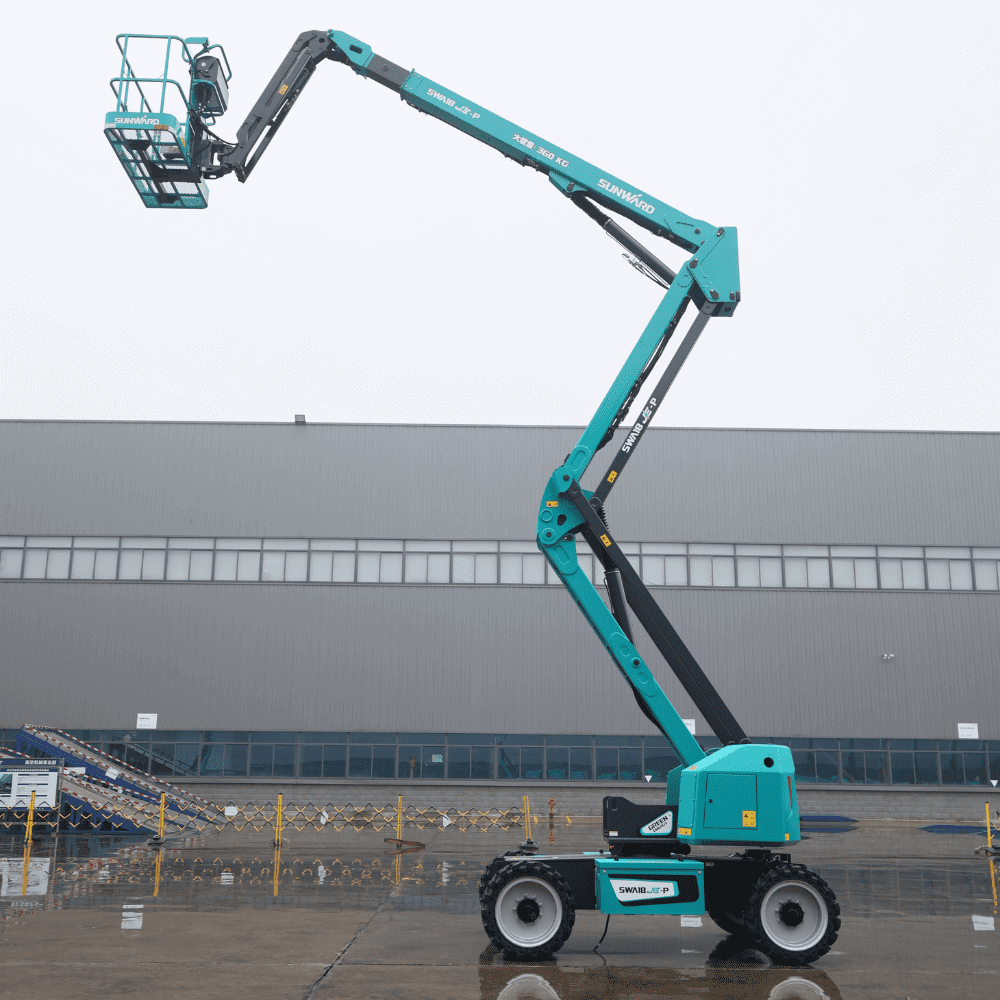

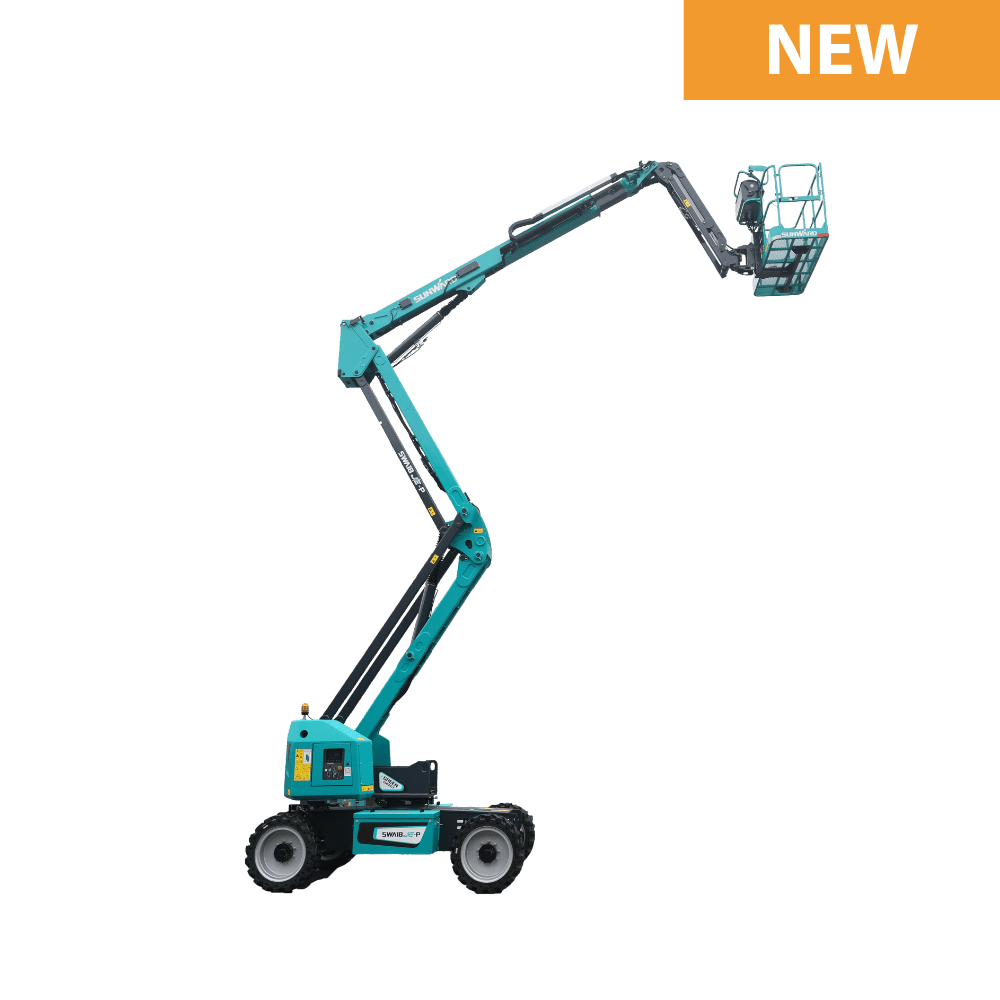

SWA 18JE-P
The SWA 18JE-P is Sunward’s advanced electric articulated boom lift, designed for high performance, safety, and sustainability. It offers excellent maneuverability and precision, making it ideal for urban construction, maintenance, and industrial use. Equipped with intelligent safety features, it’s a reliable and eco-friendly choice for working at height.
| Max. working height | 18 m |
|---|---|
| Rated load | 260/360 kg |
| Overall weight | 8 270 kg |
| Max. working radius | 9.6 m |
SUNWARD SWA 18JE-P
The SWA 18JE-P is Sunward’s electric articulated boom lift, designed to deliver maximum performance, safety, and sustainability on elevated worksites.
With an impressive 18-meter working height, 9.6-meter working radius, and zero tail swing, this lift offers superior maneuverability and precision—perfect for urban construction, maintenance, and industrial applications.
Powered by a high-capacity lithium battery and equipped with intelligent safety features, it sets a new standard for eco-friendly, high-efficiency aerial work platforms.
Discover all the other advantages of the Sunward SWA 18JE-P.
REACH SPECIFICATIONS
Maximum platform height 16m
Maximum working height 18 m
Max. horizontal reach 9 m
Max. up & over clearance 7.8 m
DIMENSIONS
Length – stored 7.5 m
Height – stored 2.24 m
Overall width 2.3 m
Ground clearance – middle 0.37 m
Length of working platform 1.83m
PERFORMANCE
Platform rotation 180°
Max. traveling speed – stowed 5.2 km/h
Max. traveling speed – elevated 0.8 km/h
Turning radius (inside/outside) 1.15 m / 3.58 m
Max. gradeability (counterweight upwards) 40%
Maximum allowable working angle 5°

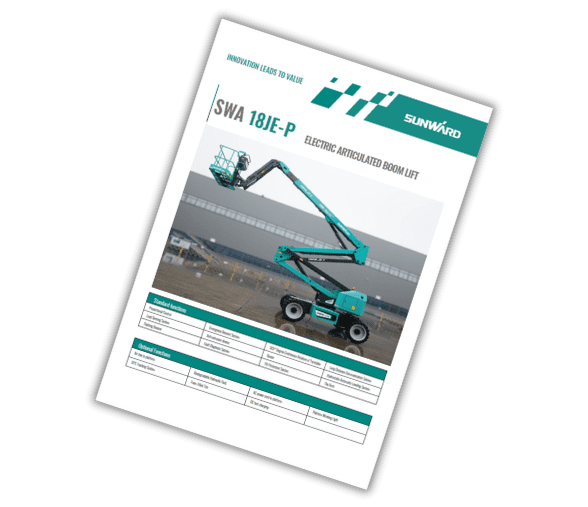

SWA 18JE-P BROCHURE
