SWE25UF

SUNWARD SWE25UF

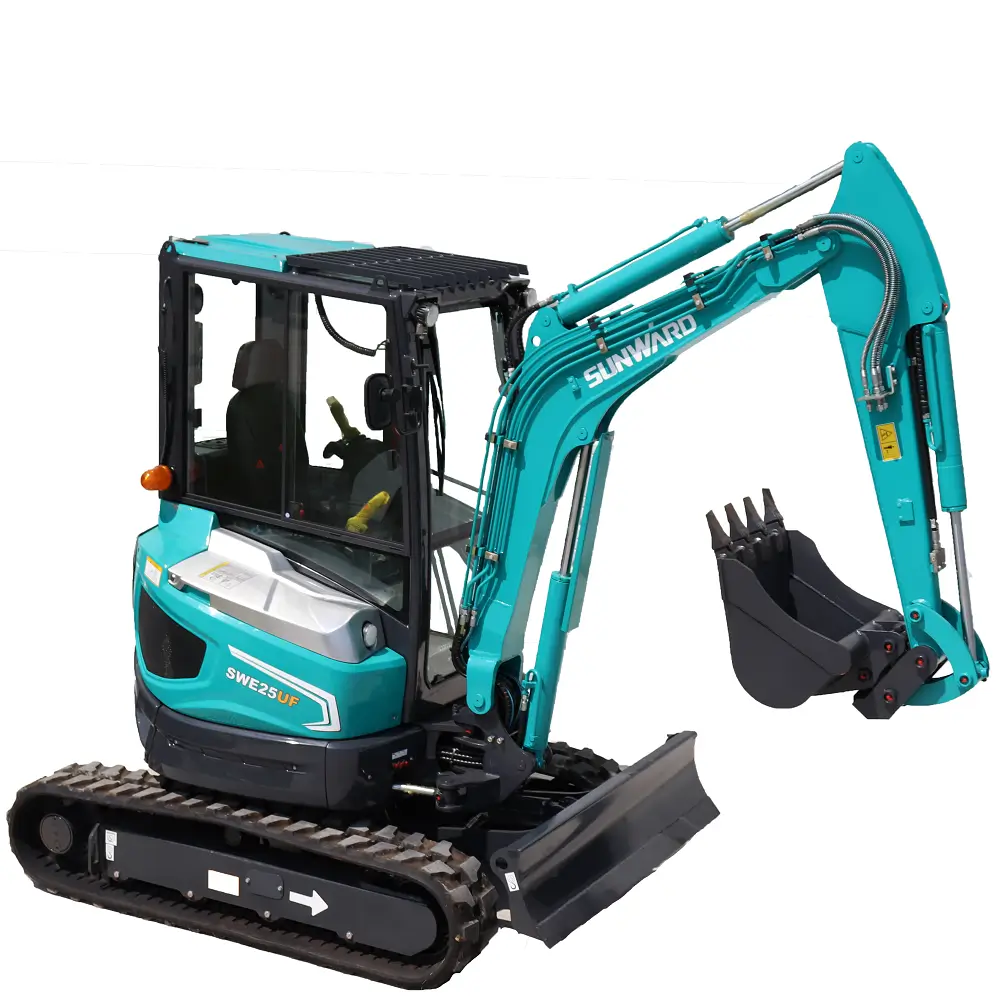

The Sunward SWE25UF compact excavator is a zero-tail excavator. The SWE 25UF benefits from excellent performance on the job. Its unique zero-tail compact design makes it the perfect option for tight job sites requiring power. Its weight category makes it very easy to transport. In the Sunward tradition of always offering the best value for money, the SWE25UF is no exception since it provides many features and up to 3 years of warranty as standard, at the right price. Of course, because we know that safety and comfort should go hand-in-hand, the SWE25UF keeps you safe and provides comfort in all working conditions.

Discover all the other advantages of the Sunward SWE25UF.

TYPE OF CAB
The SWE25UF has two cab options to choose from.

1. Open Cab (OROP) Comes standard.
2. Enclosed Cab (EROP)  includes heating, the windshield is removable and has sliding windows for airflow.

DIMENSIONS
Operating weight                    5,842 lbs.
Standard bucket capacity     21.13 gal
Shipping length                       13’7″
Shipping width                         4’11”
Height over cabin                    8′

ENGINE

Model                         Yanmar 3TNV80F-SPSU
Displacement                              77.385 cu. in.
Rated power output                   20HP

HYDRAULIC SYSTEM
Type                         1 Variable Piston Pump
Total Flow                             22 gal/min
Auxiliary Flow                      12.7 gal/min

WORKING RANGE
Max. digging depth                     9’4″
Max. digging reach                     15’8″
Max. bucket digging force        5400 lbf
Max. arm digging force              3100 lbf

POWERFUL & RELIABLE ENGINE

We chose the powerful Yanmar 3TNV80F-SPSU engine featuring low fuel consumption, low noise and vibration levels, and high-altitude performance control, ensuring intensive work in a severe environment. This 20HP industrial diesel engine compact design means it can fulfill a variety of roles. The Yanmar engine perfectly matches the power of the hydraulic system, guaranteeing smooth operation. This engine is the perfect fit for our reliable and versatile Sunward SWE25UF.

PREMIUM COMPONENTS

All key components in Sunward excavators are carefully selected, from the Yanmar engine to hydraulics. Because hydraulics are often regarded as the heart of the machine, Sunward sources exclusively from the highest references in the market. For our Sunward SWE25UF, we selected premium brands to be our main suppliers for the hydraulic pump, traveling, and swing motor. NACHI and Kayaba pumps and components are efficient, reliable, and space-saving. So, it’s no coincidence that Sunward selected them to contribute to the SWE25UF’s reliability.

HIGH WORKING RANGE

The SWE25UF has exceptional digging forces of 5.4 kip (bucket) and 3.1 kip (arm), which easily rival the 2.5-ton excavator competitors on the market. When it comes to its long-reach digging capacity, the SWE25UF’s boom cylinder design provides a maximum reach of over 15 feet long.

READY FOR A VARIETY OF APPLICATIONS

The compact excavator’s versatility starts with how well it is designed for transportation. The SWE25UF is truly compact (4’11” width) and lightweight (5,842 lbs), it allows easy, safe, and secure transport. With an automatic slew lock and 4 easily accessed tiedown points on the undercarriage, the machine can be safely transported on a small trailer with up to 3 buckets and a hydraulic breaker. The SWE25UF can adapt to any job site, thanks to the complete auxiliary settings built-in as standard – providing fully adjustable pressure and flow monitoring. This results in 3 separate auxiliary lines as standard (while the market provides 1 to 2 lines as standard). Thus, a wide range of attachments can be easily fitted to answer a variety of applications.

Well-equipped from the start

The Sunward SWE25UF is very well equipped from the day it leaves the factory:
– Double Acting Hydraulic Circuit
– Factory-fitted Hydraulic Quick Hitch Lines
– Factory-fitted Hammer & Rotation Line
– Factory-fitted Case Drain Line
– Factory-fitted One hydraulic pilot control with a double contact switch
– Factory-fitted Tiltrotator Configured Joystick Controls (tiltrotator of your choice)
– 3 LED work lights as standard: 2 on the front of the cab, 1 on the left side of the boom

Easy to maintain

On the SWE25UF, the service points have been centralized to make it easy to maintain and service. To reduce maintenance time and cost, the cover at the rear provides direct access to the service points. With easy access to the fuel tank and centralized grease fittings, the SWE25UF is as easy to maintain as it is to operate.

BEST VALUE FOR THE MONEY

Sunward is your smartest investment in reliability, performance, and high ROI. Indeed, the SWE25UF’s expert design includes a well-thought-out selection of components that streamline operation and maintenance. Our design choices result in a machine that provides so many standard features, premium-brand key components, and capabilities at the right price. Sunward’s own genuine spare parts are economical as well – and all of this best value for the money is crowned by up to 3 years of warranty, the standard for all Sunward products.
