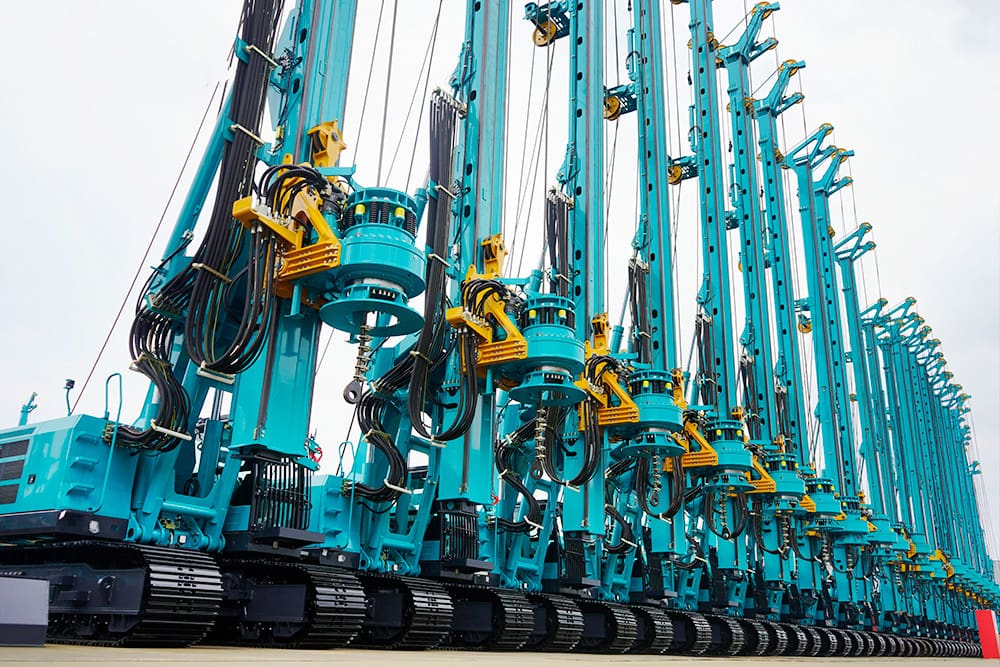

DRILLING RIGS
Sunward America’s Drills have a unique advantage in complete machine stability, control technology, steel wire rope consumption, and other performance indicators, its performance has reached an internationally advanced level. Sunward America’s rotary drilling rig is not afraid of medium (slight) weathering, hard sand layer, large gravel layer, and other complicated geological conditions.
SWDM60S
Total Weight - 44,000 lb
Max. Drilling Depth - 88.6 ft
Power - 124.7 HP
Max. Lifting Force - 17,985 lbf
Max. Drilling Diameter - 39.4 in
Max. Torque - 44,254 lbf*ft
Total Weight
Max. Drilling Depth
Power
Max. Lifting Force
Max. Drilling Diameter
Max. Torque
44,000 lb
88.6 ft
124.7 HP
17,985 lbf
39.4 in
44,254 lbf*ft
SWDM80S
Total Weight - 46,000 lb
Max. Drilling Depth - 88.6 ft
Power - 122 HP
Max. Lifting Force - 17,985 lbf
Max. Drilling Diameter - 39.4 in
Max. Torque - 59,000 lbf*ft
Total Weight
Max. Drilling Depth
Power
Max. Lifting Force
Max. Drilling Diameter
Max. Torque
46,000 lb
88.6 ft
122 HP
17,985 lbf
39.4 in
59,005 lbf*ft
SWDM130S
Total Weight - 81,571 lb
Max. Drilling Depth - 114.8 ft
Power - 175 HP
Max. Lifting Force - 30,349 lbf
Max. Drilling Diameter - 51 in
Max. Torque - 95,883 lbf*ft
Total Weight
Max. Drilling Depth
Power
Max. Lifting Force
Max. Drilling Diameter
Max. Torque
81,571 lb
114.8 ft
175 HP
30,349 lbf
51 in
95,883 lbf*ft
SWDM160S
Total Weight - 108,026 lb
Max. Drilling Depth - 183.7 ft
Power - 252.9 HP
Max. Lifting Force - 37,093 lbf
Max. Drilling Diameter - 59 in
Max. Torque - 123,910 lbf*ft
Total Weight
Max. Drilling Depth
Power
Max. Lifting Force
Max. Drilling Diameter
Max. Torque
108,026 lb
183.7 ft
252.9 HP
37,093 lbf
59 in
123,910 lbf*ft
SWDM240S
Total Weight - 174,165 lb
Max. Drilling Depth - 226.4 ft
Power - 342.6 HP
Max. Lifting Force - 62,946 lbf
Max. Drilling Diameter - 78.7 in
Max. Torque - 182,915 lbf*ft
Total Weight
Max. Drilling Depth
Power
Max. Lifting Force
Max. Drilling Diameter
Max. Torque
174,165 lb
226.4 ft
342.6 HP
62,946 lbf
78.7 in
182,915 lbf*ft
Want more out of your drill? Looking for a certain kind of drill?
We have more options that can be manufactured with a special order.
Just reach out to us directly with what you are looking for.
